MCE Industrial Condenser

MCE Evaporative Condenser

For condensing refrigerants (Ammonia NH3)

Compact, efficient and easily accessible: MCE evaporative condenser ensures refrigeration operators all the operating standards of its own technology class. The typical MITA evaporative coolers’ durability over time is a plus. MCE-EC version available with electronically controlled fans.

Compact refrigeration solution.

Compact refrigeration solution. Open circuit cooling tower with condenser, combined in a single unit.

Easy accessibility.

Easy accessibility. Completely removable walls for easy and total access to the internal components.

Solution for NH3.

Solution for NH3. Several treated refrigerants including ammonia.

Efficiency and optimal resource use.

Efficiency and optimal resource use. MITA solutions are selected through advanced software in order to fit the plant characteristics.

Industry 4.0.

Industry 4.0. Possibility of control, monitoring and data collection on company management system.

Electronic Control.

Electronic Control. MCE-EC version available with electronically controlled fans.

How Evaporative Condensers Work

The MCE series evaporative condensers can be employed in air conditioning and industrial refrigeration installations, representing in their operation an alternative to the classical water-cooled condenser with evaporative cooling tower or systems with aircooled finned coils.

The refrigerant gas to be condensed is fed to the upper header of a coil of smooth-surface tubes which, continuously wetted by water appropriately sprayed and in contact with an adequate countercurrent airflow, permits the progressive condensation of the gas.

The gas, thus cooled and condensed to the liquid state, can be returned via the lower header to the installation. Hence the evaporative condenser, in the context of water- cooled condensing systems combines the “open circuit cooling tower condenser” system in a single and compact unit exploiting, inside the unit, the forced evaporation of a small quantity of the recirculating spray water to achieve the heat load rejection which is necessary to condensate the refrigerant gas.

Ask for Information
MCE Evaporative Condenser on Skeinforce

BIM Files

Download MCE on Skeinforce

MCE Industrial Condenser on BIM Objects

BIM Files

Download MCE on BIM Objects

Technical Features

  • Axial motor-fan with direct coupling, low installed power, low noise levels (option with EC plug fan).
  • Motors with IP56 protection.
  • Body made of 22 mm thick fibreglass sandwich panels.
  • Support structure in hot dip galvanized steel after fabrication (galvanization process in accordance with UNI EN ISO 1461-99 standard, thickness not inferior to 80 microns).
  • Distribution system in PVC equipped with wide non-clogging PP spray nozzles.
  • Certified PP drift eliminators (entrainment 0.01%). Heat exchanger coils made of smooth tubes in hot dip galvanized steel after fabrication, in compliance with PED Directive 2014/68/EU. – Tank with sloping base entirely made of fibreglass.
  • Each machine can be equipped with accesses for inspections and maintenance of internal parts.
  • Capacity: from 80 kW to 1.7 MW.
  • MCE-EC version: axial motor fan system in direct coupling, low installed power, low noise levels.
Ask for Information

    Application Field:

    MCT-EC Cooling Tower with Plug Fan

    Version: MCE-EC Evaporative Condenser with EC Plug Fan

    • Efficient EC fans
    • Non corroding FRP
    • Very low noise
    • Full and simple access for maintenance
    • Sound absorbing silencers as an optional
    • Possibility of indoor installations
    Cooling Sustainability of MCE Evaporative Condenser

    Environmental and economic sustainability of each MITA evaporative condenser

    • Use of water for efficient heat transfer (i.e., cooling of the process fluid).
    • Low and further optimizable energy use.
    • Extremely small installation spaces.
    • Falls within the product categories that MITA is able to regenerate.
    • Indication of “carbon footprint” from the MITA team.
    Learn more about the sustainability of MITA cooling solutions

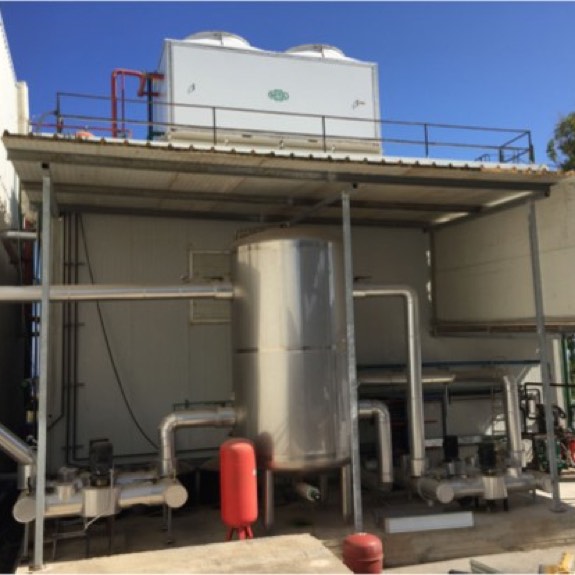

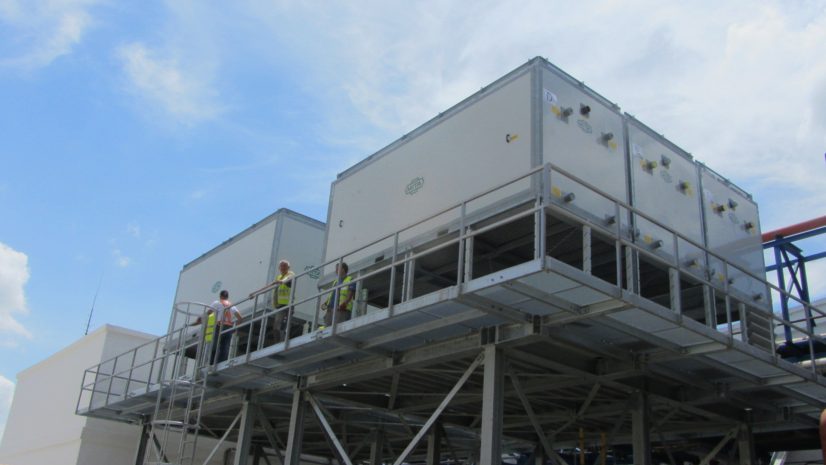

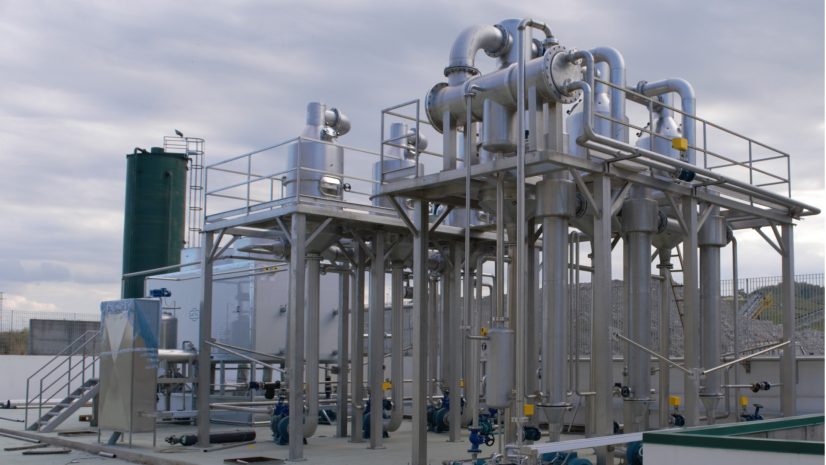

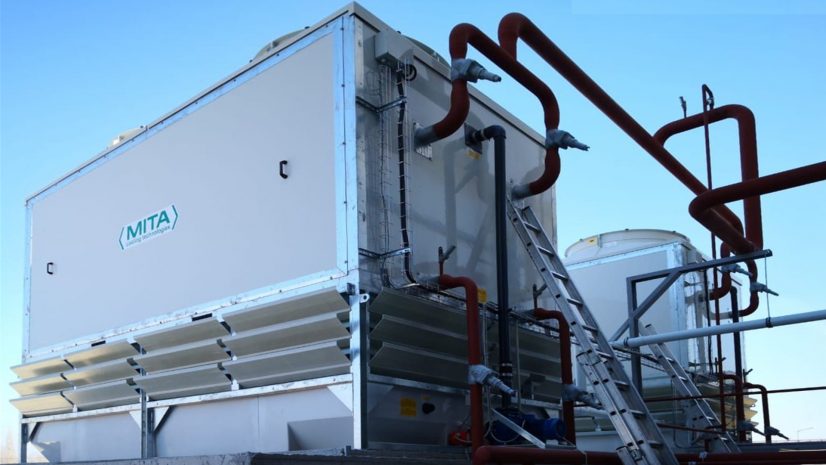

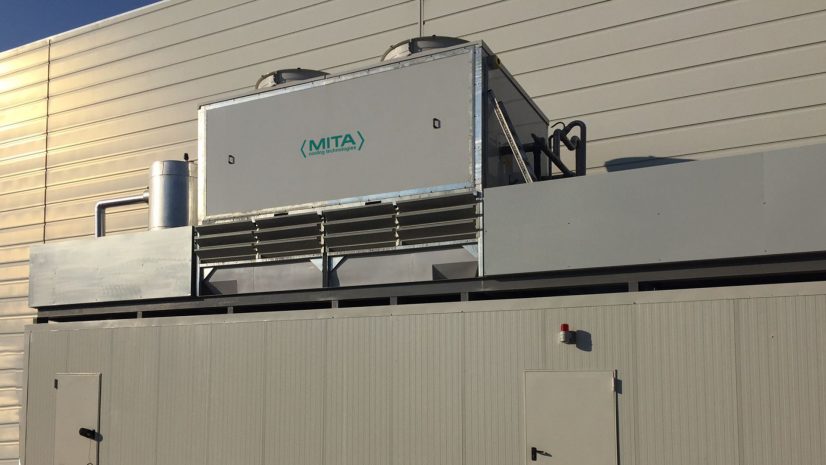

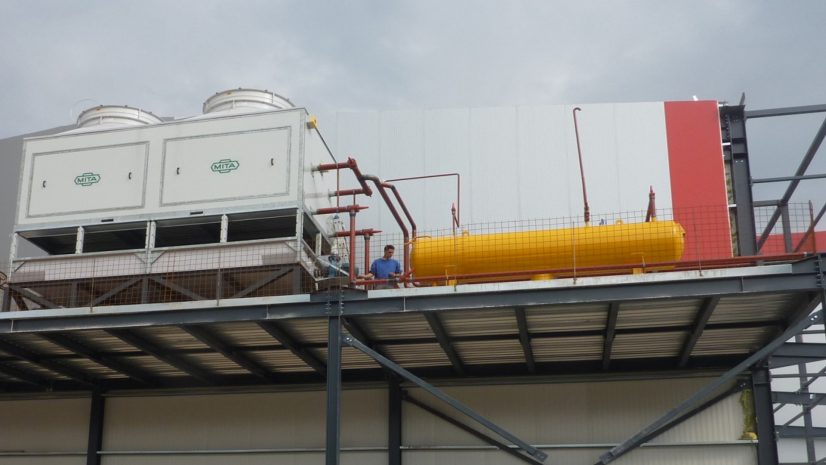

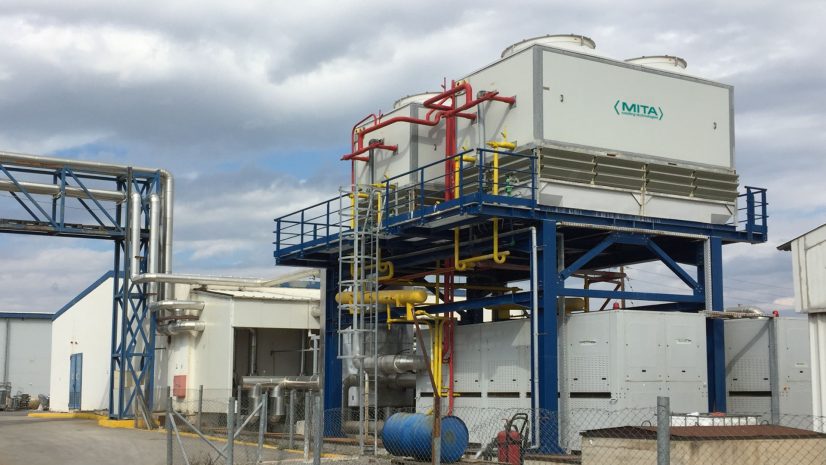

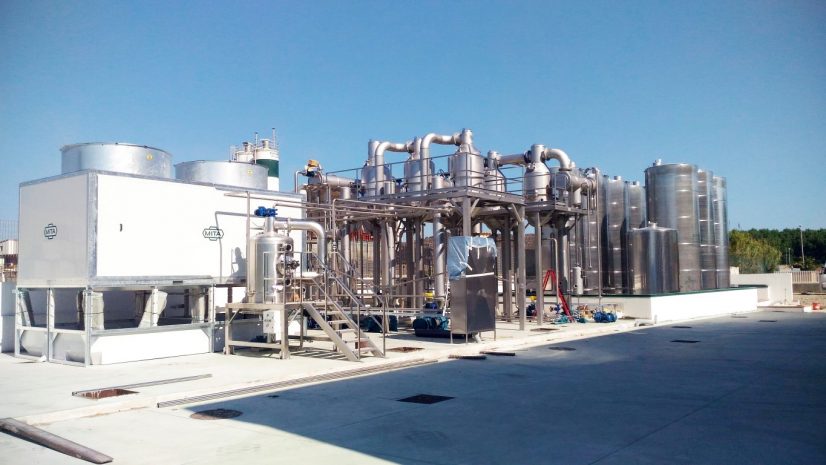

    Some MITA projects
